Navien NPF Condensing Hydro-Furnace
Heating your home with warm water instead of scorching hot air. The NPF isolates combustion from the airstream — delivering quieter, gentler, more comfortable heat with 97% AFUE efficiency and a lifetime heat exchanger warranty.
Why Hydronic Heating Is Better Than Conventional
In a conventional gas furnace, the combustion heat exchanger sits directly in the conditioned airstream — exposing air to temperatures up to 1,000°F. This strips moisture from the air, creates uneven temperatures, and generates more noise.
The NPF takes a fundamentally different approach. Gas combustion heats water in a sealed stainless steel heat exchanger completely isolated from the airstream. That heated water then flows through a hydronic coil, transferring heat to the air at a gentle 150°F maximum.
The result: quieter operation, more even heat distribution, and significantly less impact on your home’s humidity — creating a more comfortable, healthier indoor environment.
- Stainless steel combustion heat exchanger — isolated from airstream
- Hydronic coil heats air gently at up to 150°F (vs 1,000°F conventional)
- 97% AFUE — one of the highest-efficiency furnaces available
- Variable capacity 15%–100% — continuous modulation for precise comfort
- Ultra-low NOx — complies with SCAQMD Rule 1111
- EZNav™ backlit control panel — intuitive setup and diagnostics

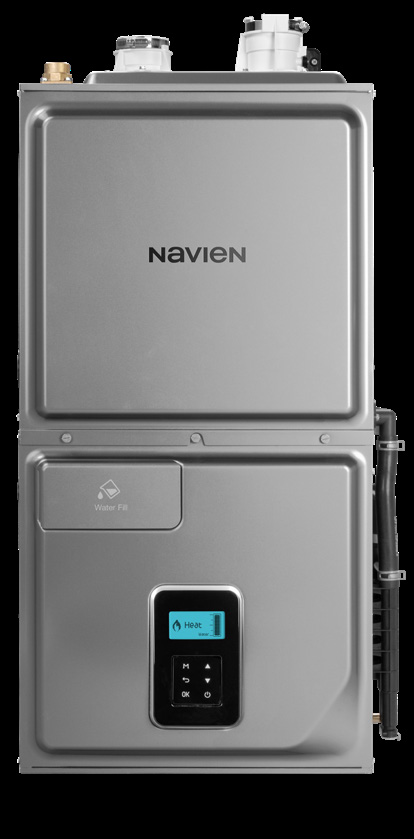

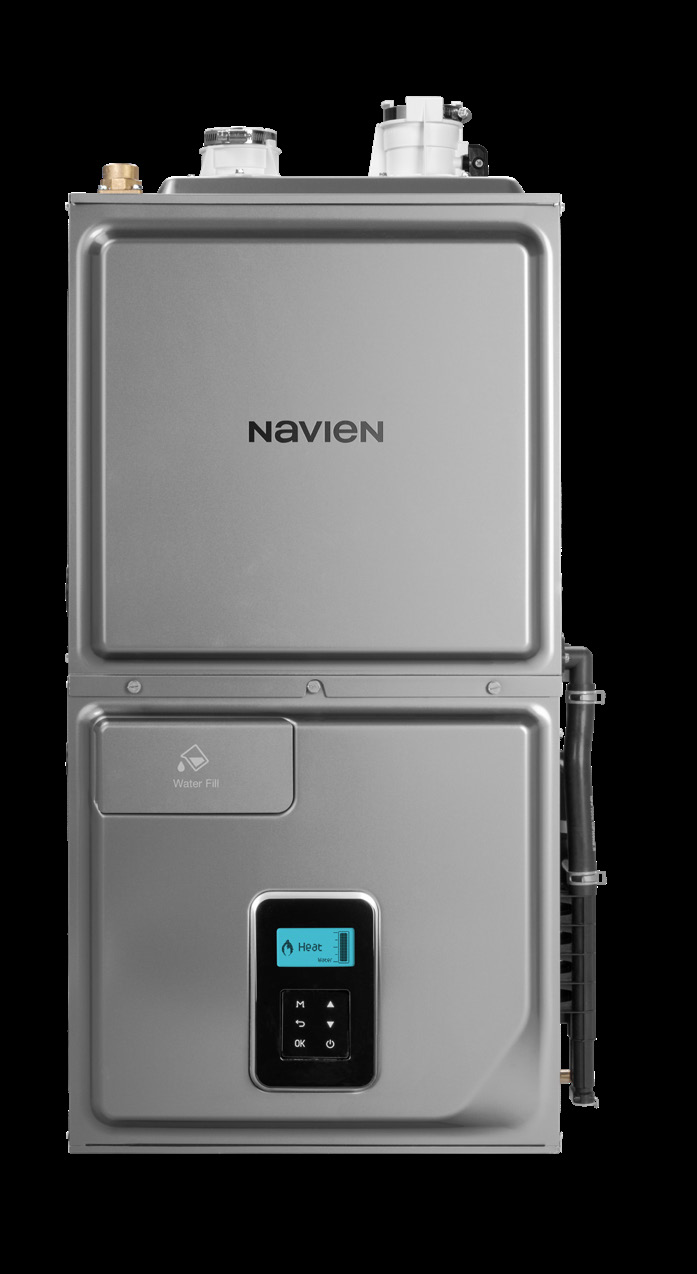

- Available in upflow, downflow, and horizontal left configurations
- High-efficiency variable-speed ECM blower motor
- PVC venting compatible — lower installation cost
- Vent Installation Detector (VID) for added safety
- NG/LP conversion kit included, high-altitude kits to 10,100 ft
Smarter, Quieter, Greener, Softer
🔇 One of the Quietest Furnaces Available
Isolated combustion eliminates the roar of gas burning in the airstream. Variable capacity operation and intelligent blower ramping further reduce noise — you may not even know it’s running.
🌿 97% AFUE — Maximum Efficiency
97% of the gas you burn becomes heat in your home. The NPF qualifies for most regional energy efficiency incentives and can significantly reduce your heating bills versus older 80% AFUE furnaces.
💧 Better Air Quality & Humidity
Because the air is never exposed to 1,000°F+ combustion temperatures, your home’s natural humidity levels are better preserved — reducing dry skin, static electricity, and winter discomfort.
🌡️ Variable Capacity All Season
The NPF adapts from 15% to 100% output — never over-firing on mild days, never under-delivering on the coldest. No two-stage on/off cycling, just precise, steady comfort.
⚡ Boosts AC Efficiency Too
The NPF’s variable-speed ECM blower enhances the efficiency of paired AC or heat pump systems. Pair with the NAA or NAZ to achieve maximum SEER2 ratings on the full system.
🏆 Lifetime Heat Exchanger Warranty
Register within 60 days and receive a lifetime warranty on the combustion heat exchanger, plus 10-year parts and 1-year labor. For non-registered units: 20-year heat exchanger, 5-year parts.
NPF Specifications — Three Configurations
| Model / Configuration | 060 Series | 080 Series | 100 Series |
|---|---|---|---|
| Configurations | Upflow (U), Downflow (D), Horizontal Left (H) | ||
| Max Heating Input | 60,000 BTU/h | 80,000 BTU/h | 100,000 BTU/h |
| Min Heating Input | 9,000 BTU/h | 11,000 BTU/h | 14,000 BTU/h |
| AFUE | 97% | ||
| Supports Cooling | 1.5–3.0 Ton | 3.0–5.0 Ton | |
| Max Cooling Airflow | 1,200 CFM | 2,000 CFM | |
| Venting | 2″ or 3″ PVC/CPVC/PP — forced draft direct or non-direct | ||
| Max Vent Length | 70 ft (2″) / 140 ft (3″) | ||
| Fuel | Natural Gas or Propane (conversion kit included) | ||
| Power Supply | 120V AC / 60 Hz | ||
| Blower Motor | Variable Speed ECM | ||
Replace Your Old Furnace with an NPF Hydro-Furnace
Is your furnace 10+ years old? An NPF upgrade can dramatically lower your heating bills, improve comfort, and give you a lifetime warranty on the heat exchanger. ER Plumbing handles the full replacement — removal, installation, venting, and Navien warranty registration.
- Old furnace removal and disposal
- Upflow, downflow, or horizontal — we fit your space
- Venting assessment and upgrade if needed
- Navien warranty registration included
Also explore: NAZ Heat Pump · Dual-Fuel System · Complete Cooling System
