Navien NAA High-Efficiency Air Conditioner
Inverter-driven variable-speed cooling with up to 18.0 SEER2 efficiency. Two outdoor units cover every Calgary home from 1.5 to 5.0 tons — using eco-friendly R-454B refrigerant.
Capacity-Matching Inverter Technology
The NAA continuously monitors your home’s comfort needs and automatically adjusts its output — speeding up or slowing down the inverter-driven compressor to match the exact load. This eliminates the inefficiency of on/off cycling found in conventional ACs.
Just two SKUs — the NAA17V36 (2–3 ton) and NAA17V60 (4–5 ton) — replace what would normally require multiple different unit sizes, simplifying inventory and installation.

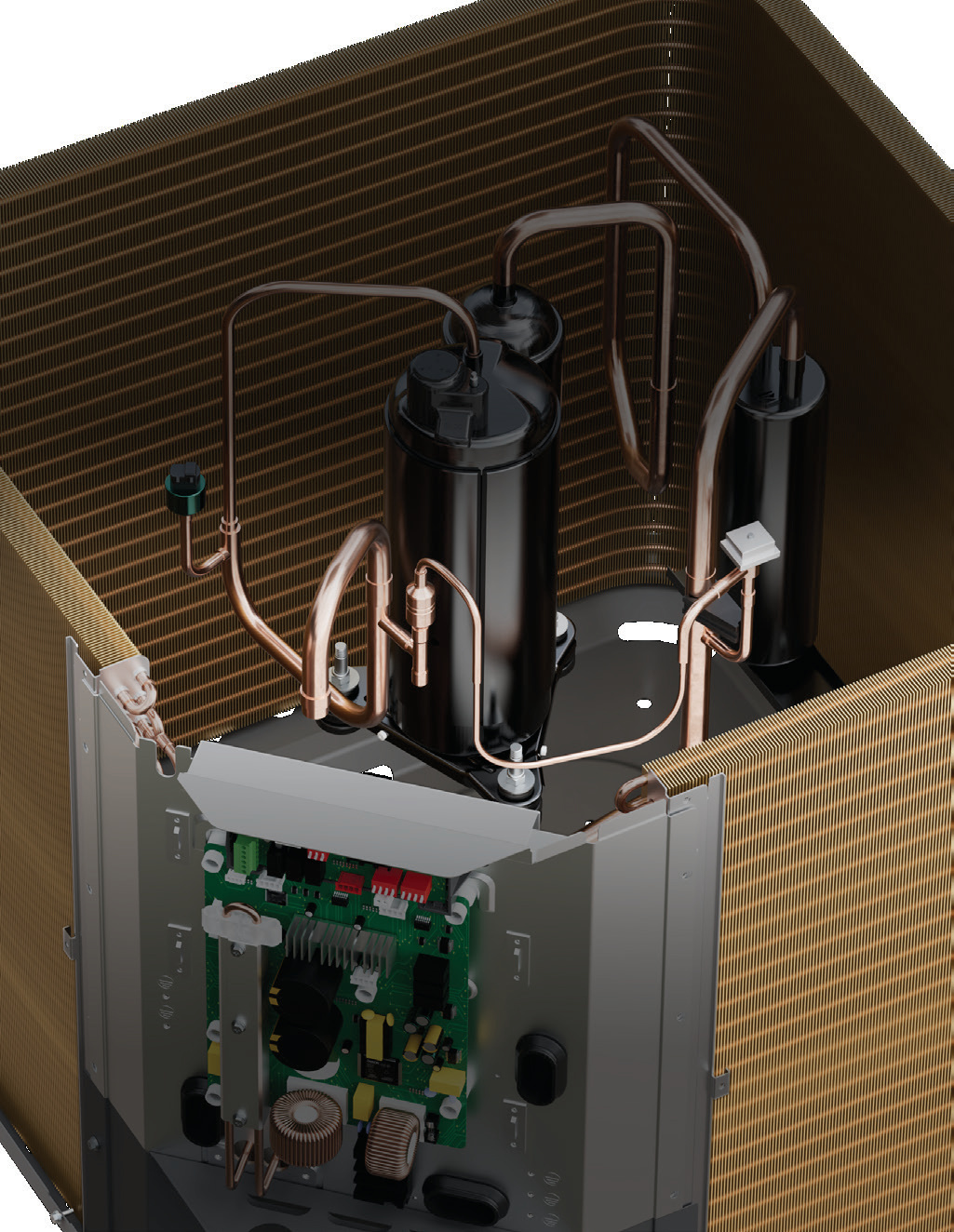

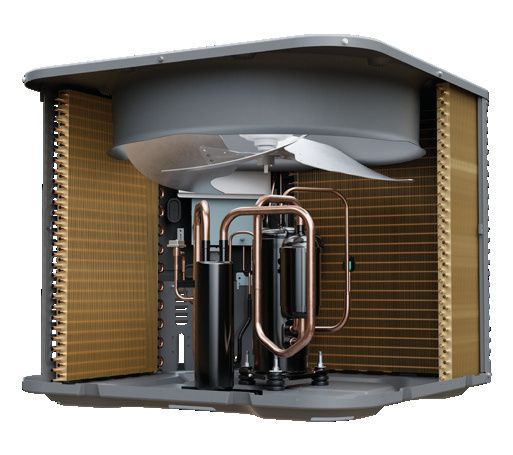

- Inverter-driven variable-speed rotary compressor
- Works with conventional single- or two-stage thermostats
- Gold Coat outdoor coil for corrosion protection
- Swept wing fan blades — whisper-quiet operation
- Deep drawn venturi for efficient airflow
- Four independent louver access panels — easy coil cleaning
- Factory charged for 25 ft. line set
- Refrigerant-cooled inverter for high-ambient efficiency
- R-454B low-GWP eco-friendly refrigerant
- Compatible with Navien NAM cased coils and NAS air handlers
Why Choose the NAA Air Conditioner?
Up to 18.0 SEER2 Efficiency
With a matched NAM cased coil and NPF Hydro-furnace, the NAA achieves up to 18.0 SEER2 — significantly reducing your summer cooling bills compared to standard single-stage units.
Wide Temperature Operation
Operates reliably in outdoor temperatures from 5°F to 124°F (-15°C to 51°C). In Calgary’s warm summers, the NAA maintains consistent cooling performance even on the hottest days.
Eco-Friendly Refrigerant
Uses R-454B, a next-generation low global warming potential (GWP) refrigerant — better for the environment without sacrificing performance.
Simple Thermostat Compatibility
No need to replace your existing thermostat. The NAA works with standard single- or two-stage conventional thermostats, making retrofits straightforward and affordable.
Quiet Operation
Swept wing fan blades and a deep drawn venturi combine for one of the quietest outdoor units available — keeping your backyard peaceful all summer long.
10-Year Parts Warranty
Register within 60 days of installation and receive 10-year parts coverage. Non-registered units receive 5-year parts warranty. Labor covered for 90 days.
NAA Specifications
| Specification | NAA17V36 | NAA17V60 |
|---|---|---|
| Capacity | 2–3 Ton | 4–5 Ton |
| Max SEER2 | Up to 18.0* | |
| Max EER2 | Up to 11.5* | |
| Cooling Operating Range | 5°F to 124°F (-15°C to 51°C) | |
| Refrigerant | R-454B | |
| Voltage | 230V / 1-Phase / 60 Hz | |
| Min. Circuit Ampacity | 20A | 30A |
| Max Overcurrent Protection | 30A | 45A |
| Sound Rating (max) | 78 dB(A) | |
| Dimensions W×D×H | 29⅛″×29⅛″×25″ | 29⅛″×29⅛″×32⅞″ |
| Weight (net) | 137 lbs | 185 lbs |
| Max Line Length | 100 ft | |
| Max Vertical Lift | 50 ft | |
*With select AHRI matched indoor equipment. Navien reserves the right to change specifications without prior notice.
Get a Free NAA Installation Quote
Ready to upgrade to a high-efficiency Navien air conditioner? ER Plumbing & Heating will size the right unit for your home and provide a competitive installation quote.
- Free system sizing for your home
- New install or retrofit — we do both
- Navien warranty registration included
- Financing options available
Also explore: NAE Hydro-Boost AC · NAZ Heat Pump · NAM Cased Coil
